When a motorcycle headlight lens becomes cracked or foggy, the first step is to remove it properly. Using the how to remove motorcycle headlight lens phrase as your guide, this article walks you through the tools, safety precautions, and step‑by‑step process so you can restore clear illumination without damaging the housing.

Tools and Materials You’ll Need

Gather these items before you start. Having everything at hand reduces the chance of dropping a screw or scratching the glass.

  • Phillips and flat‑head screwdrivers (size #2 is common)
  • Torx set (often T20 or T25 for modern bikes)
  • Plastic trim removal tool or a soft‑edge pry bar
  • Masking tape or painter’s tape
  • Clean microfiber cloth
  • Rubber gloves (optional for better grip)

Preparation and Safety Checks

Safety is essential. Disconnect the battery to avoid accidental short circuits, especially on bikes with LED or HID units that draw power while the ignition is off.

1. Locate the battery and disconnect

Most motorcycles have a 12 V lead‑acid or lithium‑ion battery under the seat or side cover. Remove the seat, locate the negative terminal, and disconnect the black clamp.

2. Protect surrounding surfaces

Apply masking tape around the headlight housing. This prevents scratches on the fairing and catches any small screws that may fall out.

Step‑by‑Step Removal Process

Step 1 – Remove the headlight housing screws

Inspect the front and rear of the headlight assembly. You’ll typically find 3–5 screws: two on the outer rim and one or two inside the fairing. Use the appropriate screwdriver or Torx bit to loosen them. Do not fully remove the screws yet; keep them loosely threaded so the housing stays stable.

Step 2 – Detach the wiring connector

Most modern headlamps have a quick‑disconnect plug. Press the release tab and gently pull the connector away. If the plug is stubborn, wiggle it slightly while supporting the wiring harness.

Step 3 – Separate the housing from the frame

With the screws still loosely in place, use a plastic trim removal tool around the edge of the housing. Apply even pressure to pop the housing free without cracking the lens. If the housing resists, double‑check for hidden screws behind the grill or under a decorative cap.

Step 4 – Remove the lens from the housing

The lens is usually held by a rubber gasket or a small retaining clip. Gently lift the lens using a soft cloth to avoid fingerprints. If a clip is present, release it with a flat‑head screwdriver, then slide the lens out.

Step 5 – Inspect and clean the housing

Take this opportunity to clean any debris from the housing interior with a microfiber cloth. Check the gasket for cracks; replace it if necessary to ensure a watertight seal when you reinstall the lens.

Reinstalling a New Lens or Refurbished Unit

Whether you’re installing a brand‑new lens or reusing the original after polishing, follow these reverse steps:

  • Place the new lens into the housing, aligning the gasket or clip.
  • Seat the housing back onto the frame, ensuring the mounting points line up.
  • Re‑attach the wiring connector, confirming a solid click.
  • Torque the screws to the manufacturer’s specification (usually 2–3 Nm).
  • Reconnect the battery and test the headlight on low and high beams.

Common Pitfalls and How to Avoid Them

Even experienced riders can encounter issues. Here are three frequent mistakes and the corrective actions.

Over‑tightening screws

Excessive torque can crack the housing or strip the threads. Use a torque wrench set to the recommended value.

Using metal tools on the lens

Metal pry bars can leave permanent scratches. Stick with plastic tools or a wrapped cloth for leverage.

Skipping the gasket inspection

A worn gasket lets water seep into the headlamp, causing fogging. Replace any damaged seals before reassembly.

When to Choose a Replacement Assembly

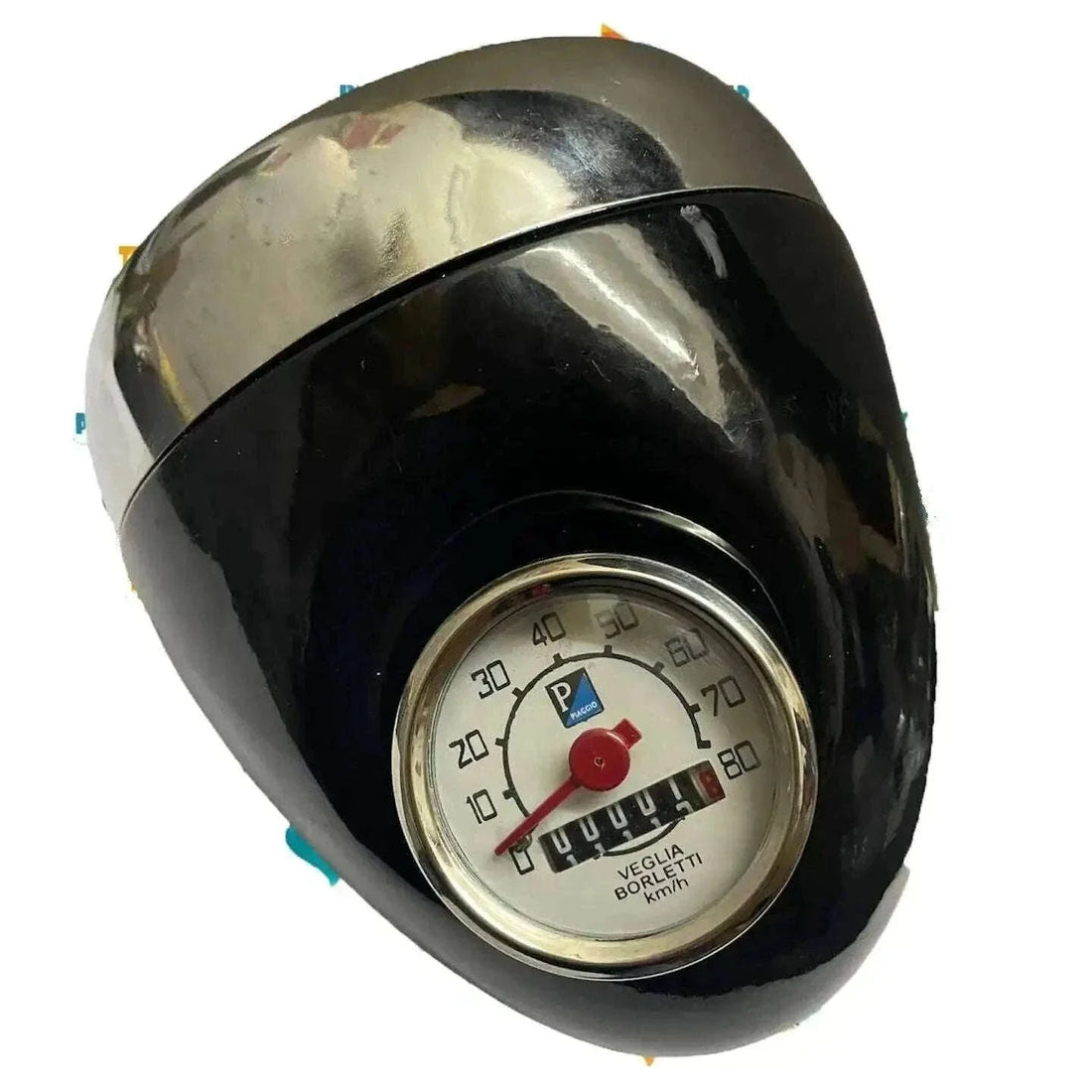

If the lens is severely cracked, the housing is corroded, or the internal bulb housing is damaged, a complete replacement may be more cost‑effective. For a reliable, high‑quality option, consider the Luna Moped Headlight Assembly - StellerGear Premium Quality. It includes a pre‑installed lens, gasket, and wiring harness, reducing future removal steps.

FAQ

Do I need to remove the entire headlight assembly to change the lens?

Not always. Some bikes allow lens removal while the housing stays mounted. Check your model’s service manual; most modern helmets require the housing to be removed for a clean replacement.

Can I clean a fogged lens instead of replacing it?

Minor fogging can be polished with a plastic polish and a clean cloth. However, deep scratches or yellowing usually require a new lens to restore full brightness.

What torque setting should I use for headlight screws?

Typical torque ranges from 2 to 3 Nm (Newton‑meters). Refer to your motorcycle’s service guide for the exact specification to avoid over‑tightening.
