Replacing or tightening Suzuki Samurai exhaust manifold bolts is a common maintenance task for owners of these iconic 4x4 vehicles. Over decades of heat cycles and off-road exposure, the original factory hardware often suffers from severe corrosion, leading to annoying exhaust leaks, ticking noises from the engine bay, and potentially warped manifold flanges. Addressing these bolts requires patience, the right chemical agents, and a clear understanding of the G13 engine block’s metallurgical sensitivities.

Managing Suzuki Samurai Exhaust Manifold Bolts

The primary challenge when working on these manifold bolts is the risk of snapping them off inside the cylinder head. Because these engines were often used in environments where moisture and debris are common, the steel bolts tend to fuse with the aluminum alloy of the head. When a bolt shears off flush with the surface, a simple maintenance job evolves into a complex machining task that may require engine removal.

To avoid this, treat all hardware with a high-grade penetrating oil at least 24 hours before attempting removal. Avoid using extreme torque on cold engines. Instead, allow the engine to reach operating temperature briefly so the block expands slightly, which can help break the grip of the threads. Use a six-point socket rather than a twelve-point to minimize the risk of rounding the heads of the bolts.

Recommended Tooling and Preparation

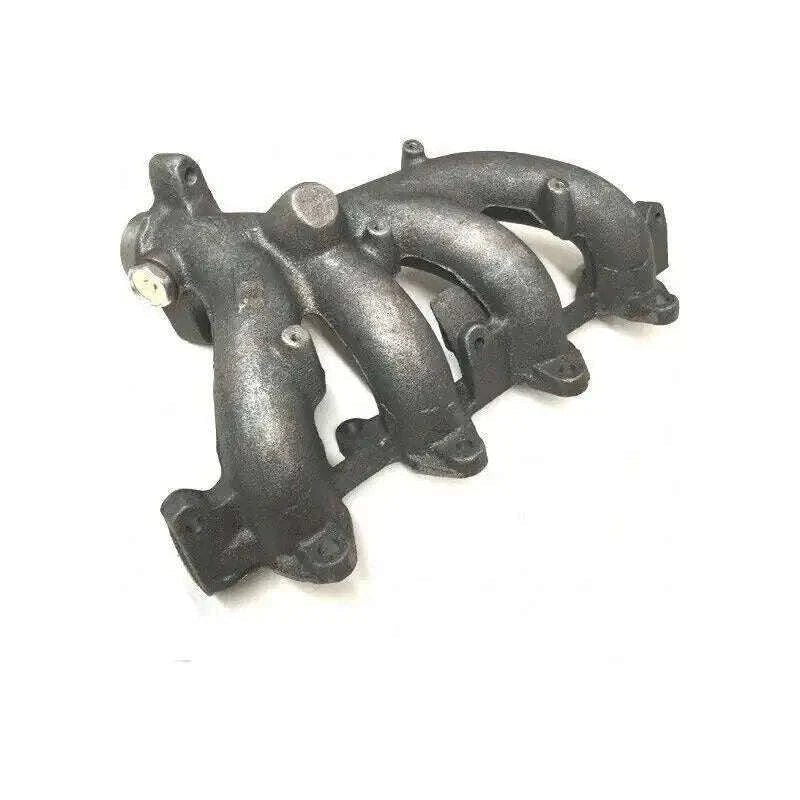

Before you begin, ensure you have the correct replacement hardware. It is standard practice to replace the studs and nuts as a set rather than reusing the old, heat-cycled metal. If you find the manifold itself is cracked or the mounting surface is no longer flat, consider upgrading to a Suzuki Samurai Exhaust Manifold - Motor Vehicle Parts to ensure a flat mating surface for the new gasket.

  • Six-point impact sockets for initial breakaway torque
  • High-temperature anti-seize compound for reinstallation
  • Replacement copper-crush exhaust manifold nuts
  • A torque wrench capable of measuring low-range foot-pounds
  • A set of quality cobalt drill bits in case of breakage

The Importance of Proper Torque Specifications

Once the new bolts are in place, tightening them to the correct factory specification is vital. Over-tightening leads to stretched threads or cracked aluminum flanges, while under-tightening results in immediate exhaust leaks. Always work in a crisscross pattern, starting from the center of the manifold and moving outward to ensure the gasket compresses evenly across the entire surface.

If you notice that your manifold continues to tick after being torqued to specification, check the flange for warpage. A straight edge placed against the mounting surface will quickly reveal if the metal has deformed. Installing new bolts into a warped manifold will almost always result in a failed gasket seal within a few hundred miles.

Dealing with Snapped Hardware

In the event that a bolt breaks despite your best efforts, do not panic. The most effective way to remove a broken stud is to use a center punch to mark the middle of the bolt, drill a pilot hole, and then use a left-handed drill bit. Often, the heat generated by the drilling process and the action of the left-handed bit will cause the broken section to back out of the cylinder head.

If the hole is too deep or the bolt is seized beyond drilling, you may need to use a Heli-Coil or a similar thread-repair insert. This process involves drilling out the old threads entirely and installing a stainless steel insert that provides a fresh, strong surface for your new bolts. It is a time-consuming process, but it ensures your engine block remains functional for another thirty years of service.

FAQ

Why do Suzuki Samurai exhaust manifold bolts break so easily?

The bolts are prone to breakage because of galvanic corrosion between the steel studs and the aluminum cylinder head, combined with constant thermal expansion and contraction over years of operation.

Should I use anti-seize when installing new bolts?

Yes. Applying a thin layer of nickel-based high-temperature anti-seize to the threads of the new bolts will make future maintenance significantly easier and prevent the hardware from fusing to the engine head.

Can I reuse the original manifold if the studs are broken?

You can reuse the manifold provided it is not cracked and the mounting face is perfectly flat. If it is warped, the new bolts will not maintain a seal, and you should replace the unit.
